1544 - Capsule / tablet / pill counting machine for sizes 000 to 5 View larger

1587 - Capsule / tablet / pill counting machine for sizes 00 to 5

1587

New product

Rate: 15 to 20 bottles / minute

Capsule sizes: 00-5#

Click here to watch the machine in operation

More details

Request a quote

More info

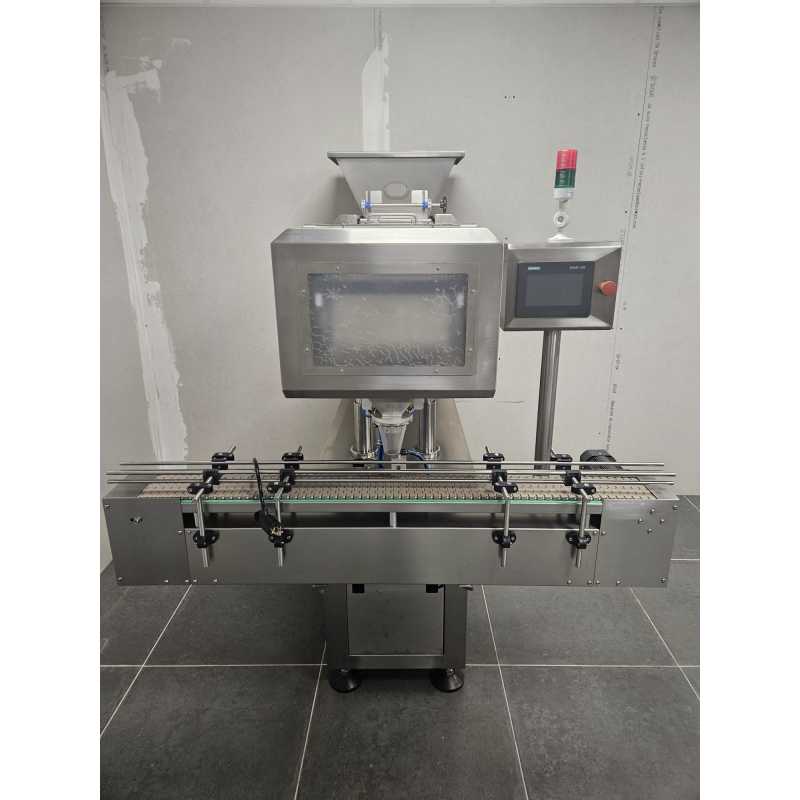

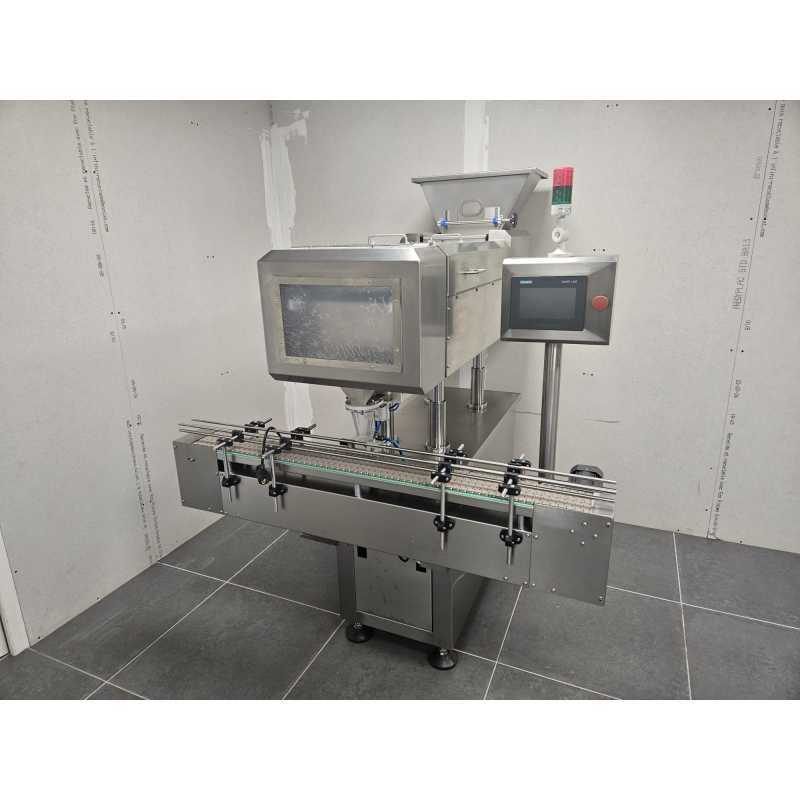

Capsules of all sizes / tablet / pill counter

This machine counts capsules, pills and tablets in order to fill bottles with the right amount of products with an error rate inferior to 1 for 1000.

This machine is suitable for the cosmetic, pharmaceutical and food industries.

Possible applications

  • 00-5# capsules
  • Soft gels
  • <Ø22 normal tablets
  • <Ø20 pills
  • Special shape tablets
  • Coating tablets
  • Other solid granules

Capsule counting machine equipped with

  • Ormon photoelectric sensor
  • Switch button Schneider
  • Human-Machine interface
  • STMicroelectronics main control chip

Technical specifications

  • Applicable bottle shapes: 10-500 ml round | square plastic bottle
  • production rate: 15-30 bottles / minute
  • Counting range: 1-9999 per bottle
  • Filling error: < 1‰ bottles
  • Power supply: AC 220V 50Hz 0.6 Kw
  • Weight: 250 Kg
  • Pressed air supply: 0.6 Mpa
  • Overall dimensions: 1360 * 1350 * 1650 mm
  • Remark: Rate is subject to size and shape of bottles as well as number of products per bottle

Operating details

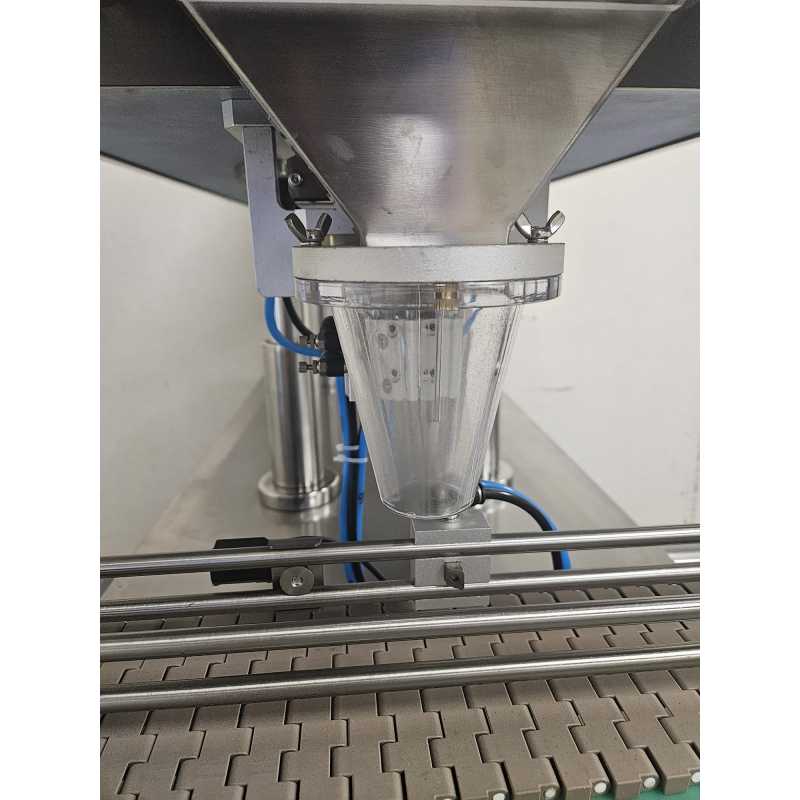

The bottle blocking device on the conveyor blocks the bottles in order to fill the bottles waiting to be filled with products by vibration of the feeding corrugated plate. A counting photoelectric sensor installed on the hopper ensures that the machine fills the bottle with the right amount of capsules, pills or tablets.
